MicroWave Full Outdoor RTN 380H 81G Sub Band A 52450930 F81310000ALA

Name: MicroWave Full Outdoor RTN 380H 81G Sub Band A 52450930 F81310000ALA
Brand: Huawei
Price: 1 USD

Buy cheap MicroWave Full Outdoor RTN 380H 81G Sub Band A 52450930 F81310000ALA product

Model Number : RTN 380H 81G

Place of Origin : China

Brand Name : Huawei

Part Number : 52450930

Dimensions (H x W x D) : 320 mm x 265 mm x 95 mm

Frequency bands : 71-76 GHz and 81-86 GHz

Channel spacing : 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, and 750 MHz

RF configuration mode 1 : 1+0 mode

RF configuration mode 2 : 2+0 mode

RF configuration mode 3 : 1+1 hot standby (HSB)

RF configuration mode 4 : CCDP (common mode)

RF configuration mode 5 : XPIC (enhanced mode)

RF configuration mode 6 : Multiple RF directions

Packaging Details : Export carton package

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

MicroWave Full Outdoor RTN 380H 81G Sub Band A 52450930 F81310000ALA

52450930 ,F81310000ALA : Full Outdoor MicroWave,RTN 380H,81G,-3,F81310000ALA,10000MHz,Sub Band A,Low site,S,71000MHz,76000MHz,DC\POE,5,Without doc,WR-12,H01,0.003 52450931,F81310000AHA: Full Outdoor MicroWave,RTN 380H,81G,-3,F81210000AHA,10000MHz,Sub Band A,High site,S,81000MHz,86000MHz,DC/POE,5,Without doc,WR-12,H01,0.003

Specification

RTN 380 specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380 also has unique advantages in maintenance capabilities.

Item	RTN 380H specifications
Microwave types	IP microwave over native Ethernet Microwave carrying common public radio interface (CPRI) services Microwave carrying open base station architecture initiative (OBSAI) services
Frequency bands	71-76 GHz and 81-86 GHz
Channel spacing	Common mode: 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz Enhanced mode: 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz
Modulation schemes	Common mode: BPSK, QPSK, 16QAM Strong, 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM Enhanced mode: BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, and 1024QAM
Capacity	Maximum air capacity: 10 Gbit/s Maximum air-interface service throughput: 10 Gbit/s Maximum switching capacity: 42 Gbit/s
RF configuration modes	1+0 2+0 1+1 hot standby (HSB) CCDP (common mode) XPIC (enhanced mode) Multiple RF directions
Channel configuration modes	Adjacent channel alternate polarization (ACAP) Adjacent channel co-polarized (ACCP) Co-channel dual polarization (CCDP)
AMAC	Supported
ATPC	Supported
Super Dual Band	Support for working as a secondary device to form a Super Dual Band solution together with the RTN 900 Support for working as a primary advice to form a full-outdoor Super Dual Band solution together with the RTN 320/RTN 380H when it works in enhanced mode. Support for working as a primary device to form a Super Dual Band solution together with third-party common-band microwave links when it works in enhanced mode.
Service ports	Three 10GE SFP optical ports, one GE electrical port, and one power over Ethernet (P&E) port for transmitting Ethernet services (two 10GE SFP ports can also use GE electrical modules) Three CPRI ports for transmitting CPRI services Three OBSAI ports for transmitting OBSAI services
Service types	Native Ethernet services: E-Line service and E-LAN service PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service) CPRI services operating at Option 2 to Option 7 rates OBSAI services operating at 1.536 Gbit/s and 3.072 Gbit/s
QoS/HQoS	Supported
MPLS Tunnel	Supported
PWE3	Supported
Clock features	1.Supported clock sources: Microwave link clock Synchronous Ethernet clock 2.IEEE 1588v2 time synchronization 3.ITU-T G.8275.1 time synchronization
Power supply modes	Direct current (DC) power or Power over Ethernet, (generally, connected to an RTN B20 PI)
Dimensions (H x W x D)	320 mm x 265 mm x 95 mm
Antennas	0.2 m, 0.3 m, and 0.6 m dish antennas 0.3 m flat antennas

Delivery

1. 5-10 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original Carton Package.

2. As customers' requirement.

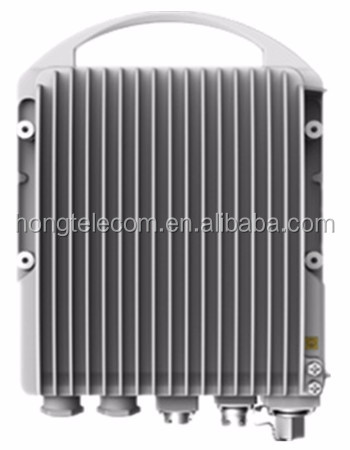

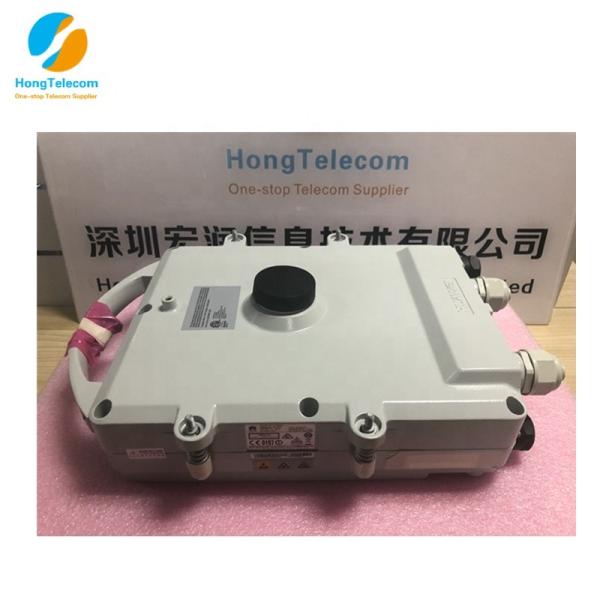

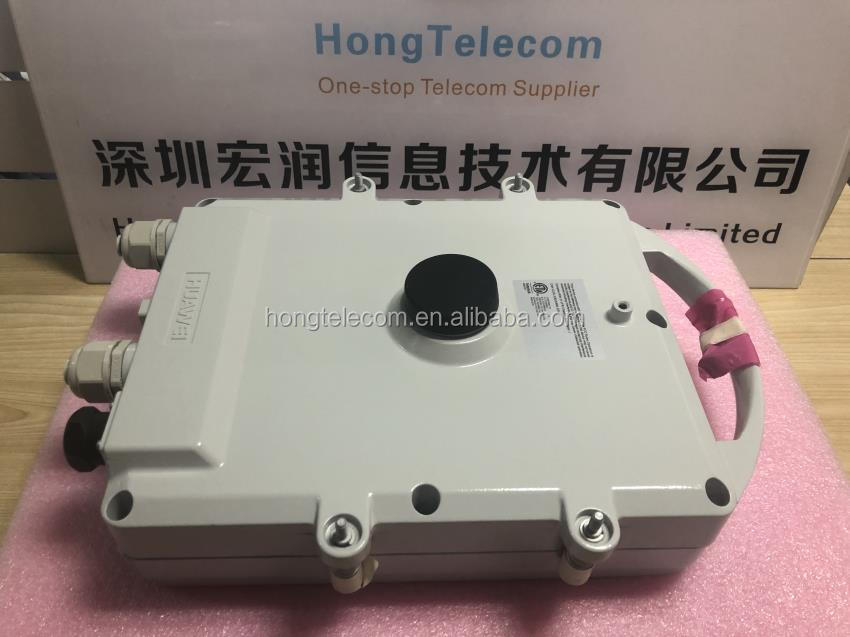

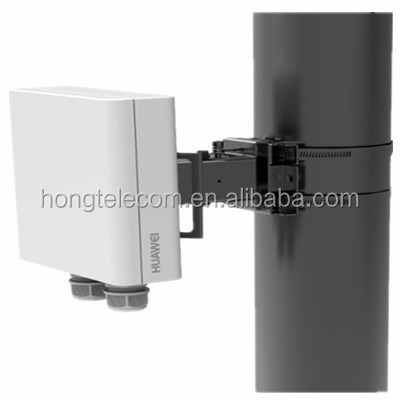

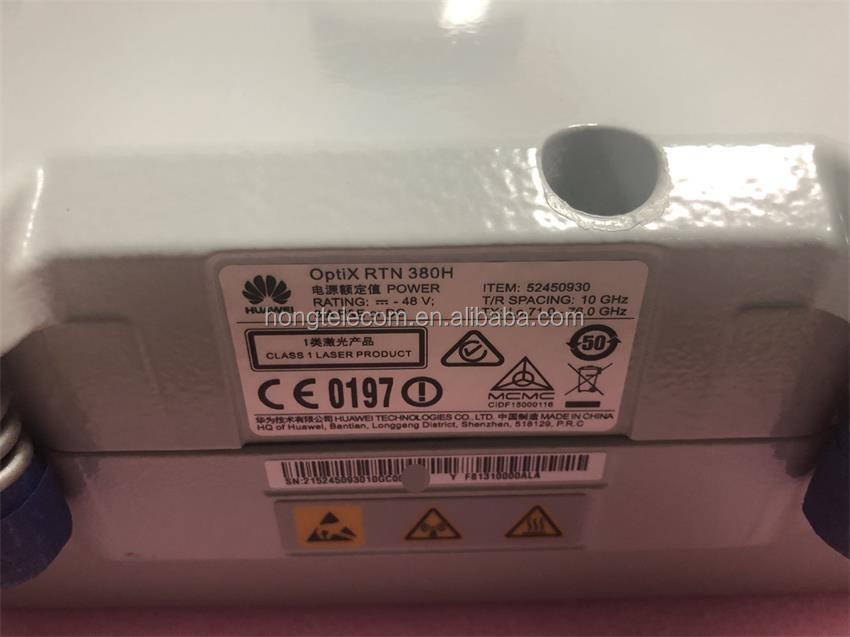

MicroWave Full Outdoor RTN 380H 81G Sub Band A 52450930 F81310000ALA Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Uonel Co.Limtied
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

	RTN310	RTN360	RTN380
Support frequency	13/15/18/23/38GHz	59-64GHz	71-86GHz
Channel spacing	7/14/28/56MHz	200MHz	62.5/125/250/500/750MHz
Modulation mode	QPSK Strong~2048QAM Light	160QAM	QPSK Strong~64 QAM
Throughput	2Gbps Max	400Mbps	4Gbps Max
Business interface	GE	GE	GE, CPRI interface
USB interface	Support	Support	Support
Working environment	Working temperature : -35℃~+55℃ Relative humidity: 5%~100%
Power supply range	Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V
Weight	6kg	2.5kg	3.8kg
